Where next?

With the program as described above you can go exploring the Mandelbrot set to your heart’s content.

There’s a lot to see, but be warned areas that are mostly blue take a long time to plot because these take the iteration loop a full 1000 times around!

The fact that the computation takes so long makes it an ideal candidate for running on a thread other than the UI thread. You may notice that the UI freezes when the set is being computed and the only way to keep the application responsive is to use a worker thread.

When you are just trying to get it all working it is worth making the Image control small so that plots occur quickly.

You can add some additional features to make the program more usable – a plot interrupt button, for example, a pan, and so on..

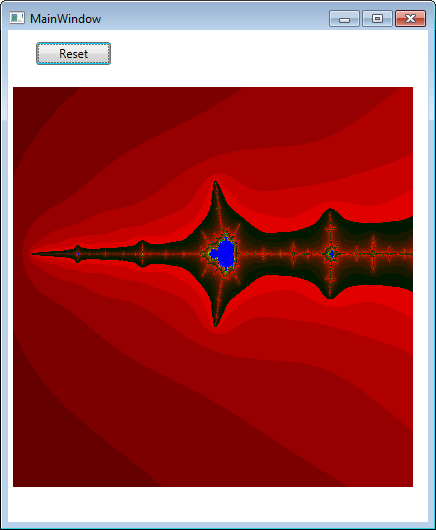

There are lots of interesting areas to explore.

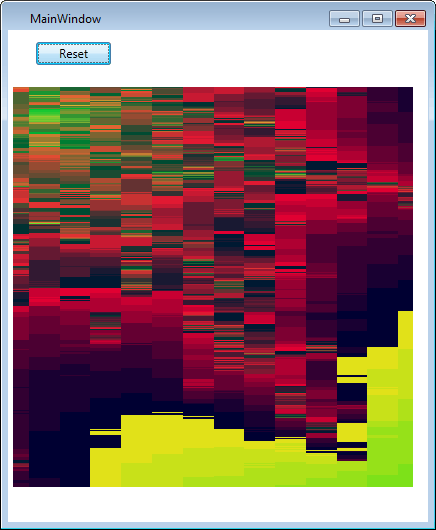

There is one small feature that I should warn you about before it wastes a lot of time when you try to “debug” the program. There are no limits on how far you can zoom in on any given region of the Mandelbrot set. You will discover that you can indeed use very high zooms, but sooner or later you will select a very small region and the result will not look fractal but “blocky”. No you haven’t discovered that there is a limit to the structure of the Mandelbrot set!

What is happening is that you have zoomed to the point where double precision variables aren’t accurate enough to represent the position of each point. The result is that you get the same answer for whole rectangular regions for the iteration and hence the blocky structure in the final plot. The solution to the problem is fairly simple – increase the precision - but this is easier said than done and you just hit another limit sooner or later. .

No not the end of fractals – you’ve just zoomed too far

Listing

using System;
using System.Collections.Generic;
using System.Linq;using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

using System.Numerics;

namespace MandelZoomer{
 public partial class MainWindow : Window    {
  private Rect area = new Rect(
                 new Point(-2.4, -1.5),
                 new Point(0.8, 1.5));

  private Rectangle selection =
            new Rectangle()
           {
             Stroke = Brushes.Black,
             StrokeThickness = 1,
             Visibility = Visibility.Collapsed
           };

  private bool mousedown = false;
  private Point mousedownpos;

  public MainWindow()
  {
   InitializeComponent();
   image1.Source = drawSet(area);
   Canvas1.Children.Add(selection);
  }

  Int32 mandelbrot(Complex c)
  {
   Int32 count = 0;
   Complex z = Complex.Zero;
   while (count < 1000 && z.Magnitude < 4)
   {
    z = z * z + c;
    count++;
   }
   return count;
  }

  WriteableBitmap drawSet(Rect area)
  {
   int PixelHeight = (int)image1.Height;
   int PixelWidth = (int)image1.Width;
   WriteableBitmap wbmap = new WriteableBitmap(
           PixelWidth,
           PixelHeight,
           96, 96,
           PixelFormats.Bgra32,
           null);

   int BytesPerPixel = wbmap.Format.BitsPerPixel / 8;
   byte[] pixels = new byte[PixelHeight *
                            PixelWidth *
                             BytesPerPixel];
   int s = PixelWidth * BytesPerPixel;
   double xscale = (area.Right - area.Left)
                               / PixelWidth;
   double yscale = (area.Top - area.Bottom)
                              / PixelHeight;
   for (int i = 0; i < pixels.Length;
                        i += BytesPerPixel)
   {
    int py = i / s;
    int px = i % s / BytesPerPixel;
    double x = area.Left + px * xscale;
    double y = area.Top - py * yscale;
    Complex c = new Complex(x, y);
    int count = mandelbrot(c);
    Color C = colorMap(count);
    pixels[i] = C.B;
    pixels[i + 1] = C.G;
    pixels[i + 2] = C.R;
    pixels[i + 3] = C.A;
   }
   wbmap.WritePixels(new Int32Rect(0, 0,
      PixelWidth, PixelHeight), pixels, s, 0);
   return wbmap;
  }

  Color colorMap(int count)
  {
   Color C = new Color();
   C.B = (byte)(count / 100 * 25);
   count = count % 100;
   C.G = (byte)(count / 10 * 25);
   C.R = (byte)(count % 10 * 25);
   C.A = 255;
   return C;
  }

  private void button1_Click(object sender,
                            RoutedEventArgs e)
  {
   area = new Rect(new Point(-2.4, -1.5),
                       new Point(0.8, 1.5));
   image1.Source = drawSet(area);
  }


  private void Canvas1_MouseLeftButtonDown(
        object sender, MouseButtonEventArgs e)
  {
   mousedown = true;
   mousedownpos = e.GetPosition(Canvas1);
   Canvas.SetLeft(selection, mousedownpos.X);
   Canvas.SetTop(selection, mousedownpos.Y);
   selection.Width = 0;
   selection.Height = 0;
   selection.Visibility = Visibility.Visible;
  }

  private void Canvas1_MouseMove(
           object sender, MouseEventArgs e)
  {
   if (mousedown)
   {
    Point mousepos = e.GetPosition(Canvas1);
    Vector diff = mousepos - mousedownpos;
    Point TopLeft = mousedownpos;
    if (diff.X < 0)
    {
     TopLeft.X = mousepos.X;
     diff.X = -diff.X;
    }
    if (diff.Y < 0)
     TopLeft.Y = mousepos.Y;
     diff.Y = -diff.Y;
    }
    selection.Width = diff.X;
    selection.Height = diff.Y;
    Canvas.SetLeft(selection, TopLeft.X);
    Canvas.SetTop(selection, TopLeft.Y);
   }
  }

  private void Canvas1_MouseLeftButtonUp(
         object sender, MouseButtonEventArgs e)
  {
   mousedown = false;
   selection.Visibility = Visibility.Collapsed;
   double xscale = (area.Right - area.Left) /
                                 image1.Width;
   double yscale = (area.Top - area.Bottom) /
                                 image1.Height;
   Point TopLeft = new Point(area.Left +
    Canvas.GetLeft(selection) * xscale,
    area.Top - Canvas.GetTop(selection)
                                * yscale);
   Point BottomRight = TopLeft + new Vector(
     selection.Width * xscale,
            -selection.Height * yscale);
   area = new Rect(TopLeft, BottomRight);
   image1.Source = drawSet(area);
  }
 }
}
