A Fast Pulse

Now we can re-write a Blinky style program to find out how fast the Pi 5 can toggle a GPIO line. We first have to map the peripherals area into user space and set up all of the addresses we want to use. Next we configure the pin as an output and start a loop that toggles the line using the XOR register:

The complete program is:

#include <stdio.h>
#include <stdlib.h>
#include <sys/mman.h>
#include <fcntl.h>
#include <errno.h>
#include <string.h>
#include <unistd.h>
#include <stdint.h>
typedef struct{
    uint32_t status;
    uint32_t ctrl;
}GPIOregs;
#define GPIO ((GPIOregs*)GPIOBase)
typedef struct
{
    uint32_t Out;
    uint32_t OE;
    uint32_t In;
    uint32_t InSync;
} rioregs;
#define rio ((rioregs *)RIOBase)
#define rioXOR ((rioregs *)(RIOBase + 0x1000 / 4))
#define rioSET ((rioregs *)(RIOBase + 0x2000 / 4))
#define rioCLR ((rioregs *)(RIOBase + 0x3000 / 4))
int main(int argc, char **argv)
{
    int memfd = open("/dev/mem", O_RDWR | O_SYNC);
    uint32_t *map = (uint32_t *)mmap(
        NULL,
        64 * 1024 * 1024,
        (PROT_READ | PROT_WRITE),
        MAP_SHARED,
        memfd,
        0x1f00000000
    );
    if (map == MAP_FAILED)
    {
        printf("mmap failed: %s\n", strerror(errno));
        return (-1);
    };
    close(memfd);
    uint32_t *PERIBase = map;
    uint32_t *GPIOBase = PERIBase + 0xD0000 / 4;
    uint32_t *RIOBase = PERIBase + 0xe0000 / 4;
    uint32_t *PADBase = PERIBase + 0xf0000 / 4;
    uint32_t *pad = PADBase + 1;

    uint32_t pin = 2;
    uint32_t fn = 5;
    GPIO[pin].ctrl=fn;
    pad[pin] = 0x10;
    rioSET->OE = 0x01<<pin;
    rioSET->Out = 0x01<<pin;

    for (;;)
    {
        rioXOR->Out = 0x04;
    }
    return (EXIT_SUCCESS);
}

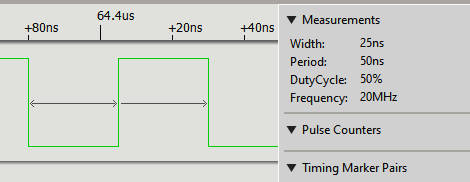

If you try this out you will find that the Pi 5 produces some consistent 25ns pulses which makes it compatible in speed to the Pi 4, but without the need for memory barriers.

In Chapter but not in this extract

• Your Own Library
• Using PWM

Digging Deeper

The big problem with the Pi 5 at the time of writing is the lack of documentation. What has been made available is incomplete and a great deal of reverse engineering is required to get things working. This will likely improve over time.

Summary

• The Pi 5 has its peripherals implemented by the custom RP1 chip and this makes it incompatible with all previous Pis.

• The memory map and the register configurations are different and more like those found in the Pico in than other Pis.

• You can still work with the Pi 5’s registers using the standard memory mapping techniques.

• The /dev/mem device accesses all of the memory, but needs root privileges.

• The /dev/gpiomem0 device only provides the GPIO registers, but it can be used without root privileges.

• The Pi 5 uses the same RIO based GPIO implementation as the Pico. To use the GPIO lines you first have to select RIO mode.

• Each GPIO line also has a PAD and a PAD control register.

• The RIO registers are used to control and read the state of the GPIO line.

• Using direct memory access, the Pi 5 can produce well-formed 25ns pulses

• Although using the registers directly is a good way to get started, creating functions, and hence a library to do the same job, is a good idea.
