Debugging a realtime program is very difficult because generally you need to see it working at speed to see what is happening and pausing it often doesn't give you the information you need. However Eclipse has a good debugging option and it works perfectly well with the Edison.
You can insert a breakpoint in the program simply by double clicking on the left margin next to an instruction.
What is a breakpoint?
It is a location in your program where, when run in debug mode, the program will a pause for you to examine the values stored in variables, etc.

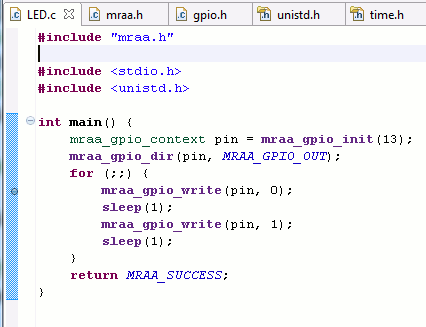

For example to set a breakpoint on the line mraa_gpio_write(pin,0) you simply double-click in the margin and a round dot appears signifying a breakpoint:
Now to see the breakpoint in action you have to click the Debug icon, use the command Run,Debug or press F11.
If you do this the layout of your workspace changes to show you additional debug windows.
The program runs but pauses when it reaches the line with the breakpoint - in fact it stops before your breakpoint because it automatically breaks on the first line.

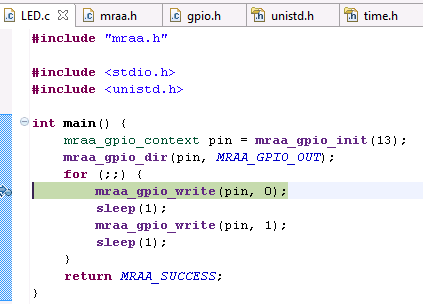

To resume the program simply click the resume icon or use the command Run,Resume or press F8. This will allow the program to run to the first manually set breakpoint:

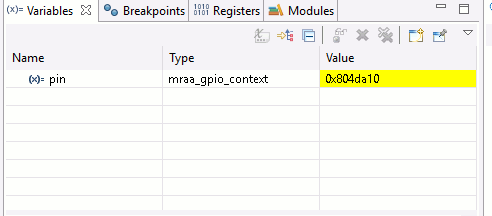

If you look at the variables window you will see that the pin variable is listed and it has a value shown in hexadecimal.
In a more complex program you can see all of the values of all of the variables and check that they are what you expected.
In the case of an internal value for an mraa_gpio_conext we can see that the pin value isn't null and hence the mraa_gpio_init(13) worked.
You can explore the Run menu for all of the different ways you can resume and single-step through your program. They are all fairly obvious and you will soon be using the shortcuts to move through your program checking, what is happening at each step.
To return from the debug workspace to the standard programming workspace simply use the command:
Window, Open Perspective, C/C++
You can add and remove windows to customize a perspective to create a working environment that fits in with what you do most often.
Summary
C is the most direct and efficient way of working with the Edison's hardware - it isn't a difficult programming language and well worth learning.
Download and install Intel System Studio IoT Edition, the customized version of the Eclipse IDE provided for the Edison, which is a full function IDE complete with smart editor and debug facilities.
When you create a new project you have to create a connection to the Edison as a remote system - it is worth checking that you can connect via a terminal.
C programs, and programs in most other languages make use of the mraa library and it is worth making sure it is up-to-date.
The Run,Configuration lets you specify the remote system to download and run the program on among other things. If you can't get your program to run check that the remote system corresponding to your Edison is selected.
If you forget to stop your program before you start running it again use a terminal to run the ps command and then kill the process that corresponds to your program.
You can debug your program simply by using the Run,Debug command.
Set breakpoints and use the variables window to confirm that what you think is happening is really happening.
Where Next?
Now that you have Eclipse set up and written the equivalent of "Hello World" for the IoT you are ready to find out more about mraa and the functions that it offers to control the GPIO. In the next chapter we look at this and the tricky problem of getting accurate timings down in the region of microseconds.
More Information
The starting point for finding out about all Intel's Internet of Things resources, including Edison, is the Intel IoT Developer Zone.
